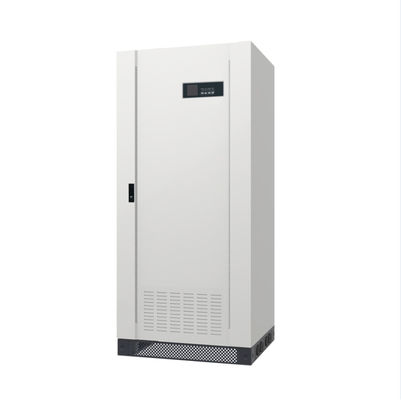

Giant iND II 31-80K Data Center 80kva 64kw Power Supply Darurat Pure Sinus Wave Surge Protection Online Industrial Ups
UPS Online Frekuensi Rendah Seri TD(tiga-tiga fase) Fitur produk 1. Teknologi kontrol digital DSP canggih 2. Layar LCD+LED 3. Dengan output terisolasi trafo 4. Fungsi DC cold start 5. Sistem Frequency Self-Adaptive 6Desain khusus perlindungan sirkuit pendek 7Kartu pemantauan seluler cerdas didukung ...
Sumber daya darurat 80kva 64kw
,Sumber Daya Darurat Pusat Data
,Perlindungan Surge Online Industrial Ups
UPS Online Frekuensi Rendah
Seri TD(tiga-tiga fase)
Fitur produk
1. Teknologi kontrol digital DSP canggih
2. Layar LCD+LED
3. Dengan output terisolasi trafo
4. Fungsi DC cold start
5. Sistem Frequency Self-Adaptive
6Desain khusus perlindungan sirkuit pendek
7Kartu pemantauan seluler cerdas didukung untuk memantau data UPS secara real time melalui aplikasi seluler.
8Dilengkapi dengan tiga transformator isolasi output, untuk memenuhi tiga fase 100% output yang tidak seimbang.
| Parameter | ||||||||||||||||
| Model | TD33 10KVA | TD33 15KVA | TD33 20KVA | TD33 30KVA | TD33 40KVA | TD33 60KVA | TD33 80KVA | TD33 100KVA | TD33 120KVA | TD33 160KVA | TD33 200KVA | TD33 250KVA | TD33 300KVA | TD33 400KVA | TD33 500KVA | |
| Kekuatan nominal | 10kVA/ 8kW | 15kVA/ 12kW | 20kVA/ 16kW | 30kVA/ 24kW | 40kVA/ 32kW | 60kVA/ 48kW | 80kVA/ 64kW | 100kVA/ 80kW | 120kVA/ 96kW | 160kVA/ 128kW | 200kVA/ 160kW | 250kVA/ 200kW | 300kVA/ 240kW | 400kVA/ 320kW | 500kVA/ 400kW | |
| Input Utama | Tegangan Nominal dan Jangkauan | 380Vac ±25% | ||||||||||||||
| Formulir input | 3P4W+G | |||||||||||||||
| Jangkauan Frekuensi | 40Hz-70Hz (bisa diatur) | |||||||||||||||
| Bypass Input | Tegangan Nominal dan Jangkauan | 380Vac ±25% | ||||||||||||||
| Formulir input | 3P4W+G | |||||||||||||||
| Output | Tegangan nominal | 380Vac ±25% (tekanan jalur) | ||||||||||||||
| Formulir output | 3P4W+G | |||||||||||||||
| Keakuratan Tegangan Statik | ± 2% | |||||||||||||||
| Tegangan Dinamis Transient | ≤ 9% | |||||||||||||||
| Distorsi bentuk gelombang tegangan output | ≤ 3% (linear), ≤ 8% (non-linear) | ≤ 3% (berlapis), ≤ 5% (tidak berlapis) | ||||||||||||||
| Faktor Daya | 0.8 | |||||||||||||||
| Frekuensi output | 50Hz/60Hz | |||||||||||||||
| Output Overload | 105%±5%≤ beban: peringatan kelebihan beban; 105%±5% |
110%≥30 menit; 125%≥10 menit; 150%≥1 menit | ||||||||||||||
| Baterai | Tegangan nominal | 192Vdc | 384Vdc | 480Vdc | 768Vdc | |||||||||||
| Dimensi (LxWxH) mm | 830x455x1055 | 830x515x1135 | 800x700x1600 | 880x850x1650 | 870x1300x1850 | 1420x908x1650 | 1630x1026x1902 | 2100x1100x2000 | ||||||||
| Berat badan | 218kg | 208kg | 208kg | 243kg | 309kg | 506.5kg | 521.5kg | 800kg | 800kg | 1099kg | 1243kg | 1200kg | 1240kg | 2600kg | 3660kg | |
-
