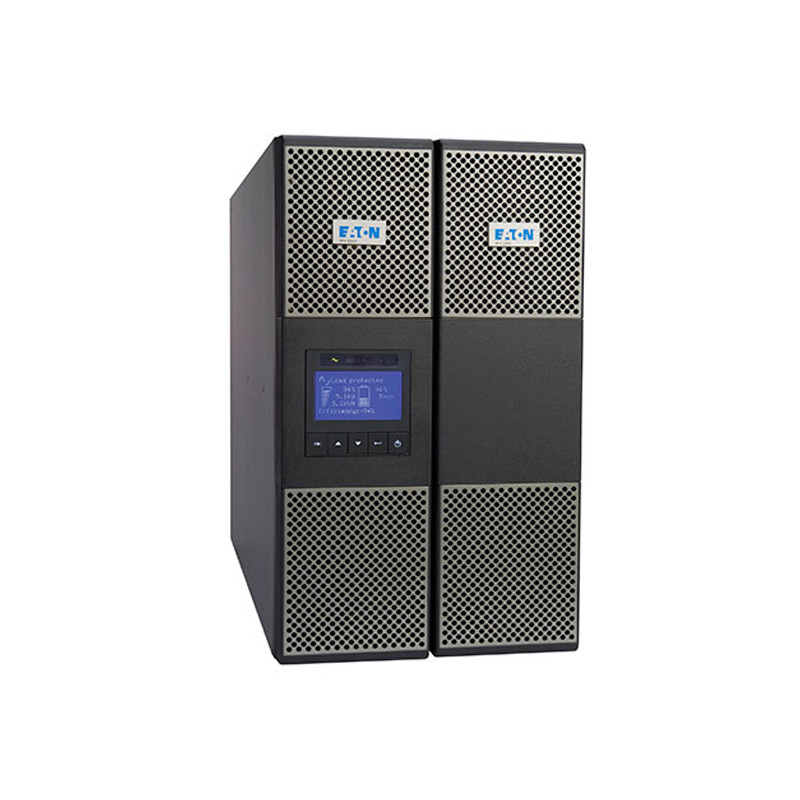

9PX1000iRT2U Eaton 9PX UPS 1000VA / 1000W 2U Efisiensi 98%
Eaton 9PX UPS 1000VA/1000W 2U 9PX1000iRT2U FITUR PRODUK EATON 9PX 1KVA DOUBLE-CONVERSION (ONLINE) 1000 W 8 AC OUTLET ((S) 9PX 1000W RT2U (menara/rak 2U) DESKRIPSI PRODUK EATON 9PX1000IRT2U Dapat diandalkan, serbaguna, kuat, efisien dengan topologi konversi ganda untuk kondisi daya konstan dan ...
9PX1000iRT2U Eaton 9PX UPS
,Eaton 9PX UPS 1000VA
,Eaton 9PX1000iRT2U
Eaton 9PX UPS 1000VA/1000W 2U 9PX1000iRT2U
FITUR PRODUK EATON 9PX 1KVA DOUBLE-CONVERSION (ONLINE) 1000 W 8 AC OUTLET ((S)
- 9PX 1000W RT2U (menara/rak 2U)
DESKRIPSI PRODUK EATON 9PX1000IRT2U
Dapat diandalkan, serbaguna, kuat, efisien dengan topologi konversi ganda untuk kondisi daya konstan dan efisiensi hingga 93 persen,model Eaton 9PX 700-3000 VA mendukung tujuan keseluruhan kontinuitas bisnis Anda. Ini dibangun untuk penyebaran yang dapat diskalakan, memiliki LCD grafis untuk pembaruan status lokal dan terintegrasi dengan lingkungan virtual.
| Fitur | |
| Topologi UPS: | Konversi ganda (Online) |
| Kapasitas daya output: | 1 kVA |
| Kekuatan output: | 1000 W |
| Bentuk gelombang: | Sinus murni |
| Tegangan operasi input (min): | 176 V |
| Tegangan operasi masukan (max): | 276 V |
| Frekuensi input: | 40/70 Hz |
| Tegangan operasi output (min): | 200 V |
| Tegangan operasi output (max): | 240 V |
| Frekuensi output: | 50/60 Hz |
| Jumlah fase input: | 1 |
| Efisiensi: | 910,5% |
| Faktor daya: | 1 |
| Tingkat kebisingan | 35 dB |
| Fitur perlindungan daya: | Pengurangan baterai |
| Pelabuhan & antarmuka | |
| Jenis outlet AC: | C13 kopling |
| Plug listrik: | C14 kopling |
| Jumlah outlet AC: | 8 outlet AC (s) |
| Port USB: |  |
| Jumlah port USB 2.0: | 1 |
| Serial interface: | |
| Tipe antarmuka serial: | RS-232 |
| Port RS-232: | 1 |
| Baterai | |
| Teknologi baterai: | Asam Timah yang Disegel (VRLA) |
| Waktu cadangan khas pada beban penuh: | 6 menit |
| Waktu cadangan khas pada setengah beban: | 16.5 menit |
| Baterai hot-swap: | |
| Tes baterai otomatis: | |
| Desain | |
| Faktor bentuk: | Rackmount/Tower |
| Warna produk: | Hitam |
| Kapasitas rak | 2U |
| Jenis tampilan: | LCD |
| Indikator LED: | |
| Keamanan: | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| Sertifikasi: | IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Kelas B, CISPR22 Kelas B, laporan CE / CB (TUV) / cULus / EAC / RCM / KC / Energy Star |
| Kondisi operasi | |
| Suhu operasi (T-T): | 0 - 40 °C |
| Rincian teknis | |
| Sertifikat keberlanjutan: | Energy Star |
| Berat & dimensi | |
| Lebar: | 440 mm |
| Kedalaman: | 450 mm |
| Ketinggian: | 86.5 mm |
| Berat: | 17.4 kg |
| Data kemasan | |
| Kit pemasangan rak: | |
| Kartu manajemen termasuk: | |
| Perangkat lunak yang dikemas: | Smart Power Software suite |
| Data logistik | |
| Kode Sistem Harmonisasi (HS): | 85078000 |
| Fitur lainnya | |
| Tegangan masuk nominal: | 230 V |
-
