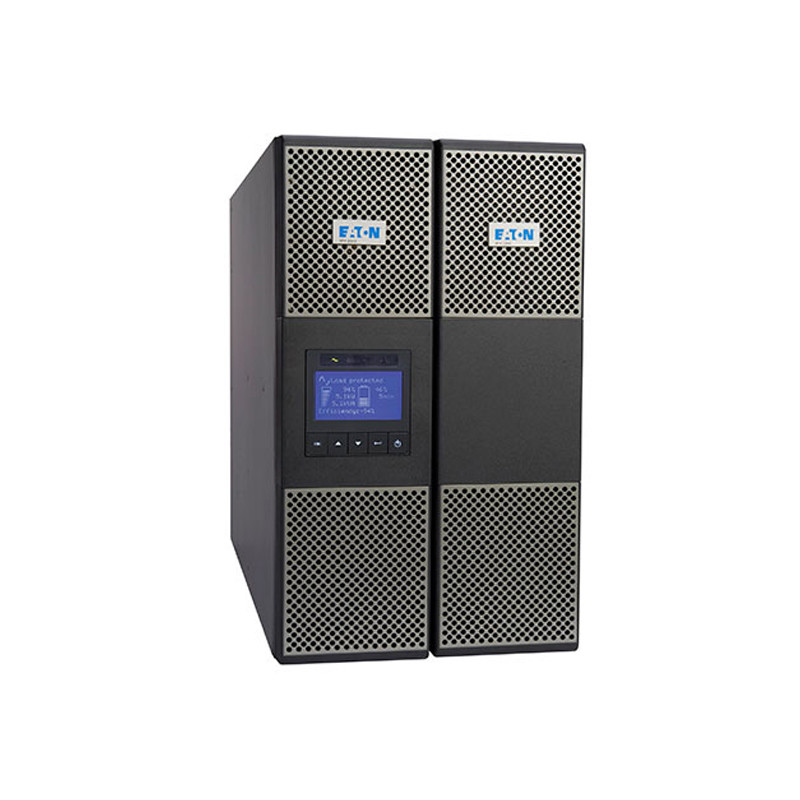

Efisiensi energi Eaton 9PX UPS 230V 240V Eaton 9PX2200IRT3U
Eaton 9PX 2200 RT3U UPS 230V 9PX2200IRT3U Eaton 9PX UPS menyediakan perlindungan daya yang efisien untuk pusat data kecil dan menengah, ruang IT dan infrastruktur. Delivering double conversion protection with 40% less energy usage 9PX is the perfect UPS for IT and Facility managers that are ...
Eaton 9PX UPS 230V
,Eaton 9PX 2200i RT3U
,Eaton 9PX2200IRT3U
Eaton 9PX 2200 RT3U UPS 230V 9PX2200IRT3U
Eaton 9PX UPS menyediakan perlindungan daya yang efisien untuk pusat data kecil dan menengah, ruang IT dan infrastruktur. Delivering double conversion protection with 40% less energy usage 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Kekuatan Lebih Banyak
Eaton 9PX (1-3 kVA) adalah UPS pertama di kelasnya yang menyediakan faktor daya Unity (VA=W).Ini memberikan 11% lebih banyak daya daripada UPS lainnya serta daya lebih banyak server dengan rating VA setara dan faktor daya yang lebih rendah.
ENERGI-EFISIENSI
Berkualifikasi Energy Star, Eaton 9PX memberikan tingkat efisiensi tertinggi untuk mengurangi biaya energi dan pendinginan.Nilai kWh dapat dipantau menggunakan LCD atau Intelligent Power Software Eaton.
Data Teknis
Spesifikasi Umum |
|
|---|---|
| Nama produk | Eaton 9PX UPS |
| Nomor katalog | 9PX2200IRT3U |
| Kode Model | Eaton 9PX 2200i RT3U |
| UPC | 743172081377 |
| Panjang produk/Jeroan | 48.5 cm |
| Ketinggian produk | 13 cm |
| Lebar Produk | 44 cm |
| Berat produk | 24.52 kg |
| Jaminan | 3 tahun pada elektronik, 2 tahun pada baterai |
| Kepatuhan | Tanda CE TUV cULus Terdaftar CSA 22.2 FCC bagian 15 Kelas B CISPR22 Kelas B |
| Sertifikasi | cULus Terdaftar EAC CE Bersertifikat ENERGY STAR IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 |
| Kode Model | Eaton 9PX 2200i RT3U |
Spesifikasi produk |
|
|---|---|
| Frekuensi sekunder ️ maksimal | 60 Hz |
| Bentuk gelombang output | Gelombang sinus |
| Jumlah baterai maksimal | 4 |
| Wattage | 2200 W |
| Faktor daya output | 1 |
| Faktor bentuk | Rak/menara |
| Output distorsi tegangan (beban linier) max | 3 |
| Termasuk kartu jaringan | Tidak. |
| Koneksi input | |
| Tegangan masukan | 100 V |
| Tegangan keluaran | 240 V |
| Frekuensi sekunder | 50 Hz |
| Kompatibilitas perangkat lunak | Manajer Daya Cerdas Eaton, Pelindung Daya Cerdas Eaton |
| Penggantian baterai | Baterai internal yang bisa ditukar panas dan modul baterai yang diperpanjang (EBM) |
| Jenis baterai | Ditiup, asam timbal |
| Efisiensi | 93.5 |
| Fitur Khusus | Topologi konversi ganda untuk pemantauan konstan kondisi daya dan mengatur tegangan dan frekuensi untuk UPS pertama di kelasnya untuk memberikan faktor daya Unit (VA = W) untuk energi Star memenuhi syarat, provides the highest efficiency level to reduce energy and cooling costs|Internal bypass allows service continuity in case of UPS fault|Next-generation graphical LCD display|Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)|Meter energy consumption (down to the managed outlet groups)|Hot swappable batteries|Advanced Battery Management (ABM) technology to increase battery lifetime|Long backup time with up to 4 optional EBM |
| Jenis konstruksi | 482.6 mm (19 inci) perangkat |
| Tegangan keluaran | 200 V |
| Warna | Hitam/perak |
| Kapasitas baterai yang diperluas | Ya, aku tahu. |
| Jangkauan tegangan output | 200/208/220/230/240 V +/- 1% |
| Topologi | Online/konversi ganda |
| Rating BTU | Online: 488 |
| Efisiensi (mode eko) | 98 |
| Waktu cadangan | 3 menit |
| Tegangan nominal masukan | 230V standar (200/208/220/230/240V) |
| Faktor daya masukan | >.99 |
| Jangkauan frekuensi input | 40-70 Hz |
-
